Guideline (Beginner,Layout) Keep elements horizontal. Do not tilt or twist them.


This stable version of the Guideline Wiki Page displays the guideline as per the i* Style of the University of Toronto. Registered users can use 'Open Version' link right at the end of the guideline statement below to access the open version of this page


Guideline   (Beginner,Layout) Keep elements horizontal. Do not tilt or twist them. Open Version


Discussion: Maintain consistency in the orientation of the Dependums and internal elements to enhance the presentation and readability of the model. It is not recommended to tilt or twist the Dependums as this might impact the readability and presentation of the model.

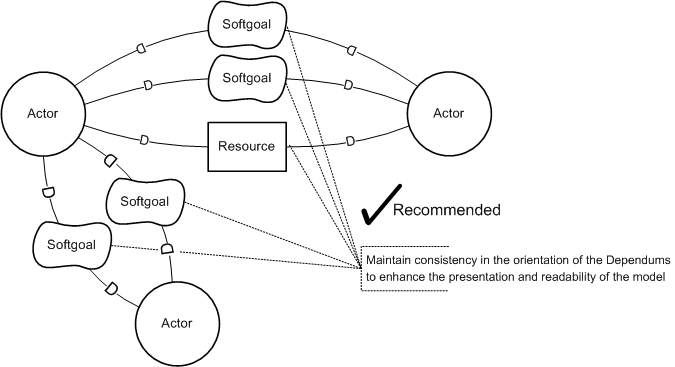

Figure 1 A recommended way of orienting the Dependums

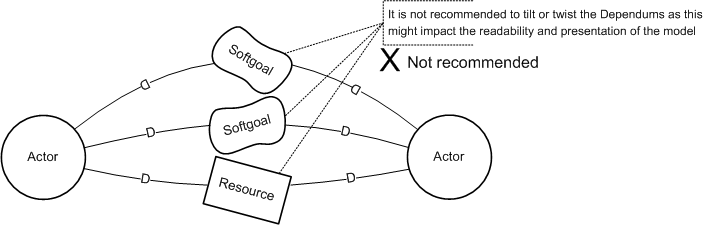

Figure 2 Tilting or twisting the Dependums is not recommended

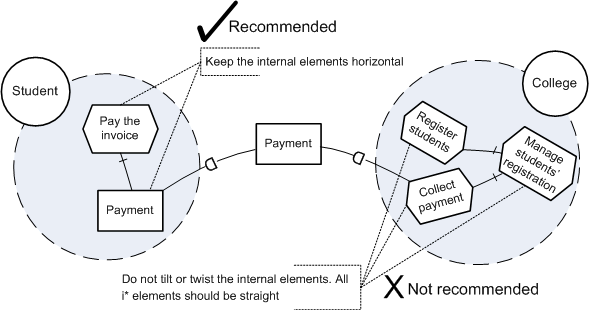

Figure 3 Tilting or twisting the internal elements is not recommended
